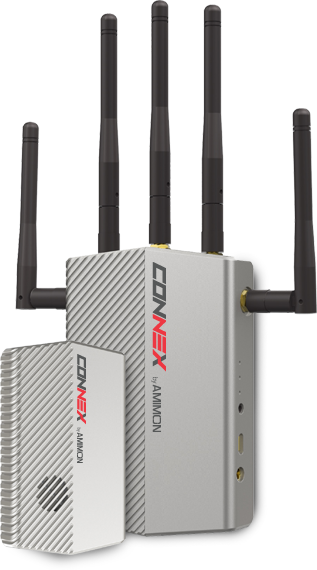

Connex sets were introduced by Amimon to meet demanding aerial wireless HD requirements, and they provide resilient connections with range up to 3300 ft. LOS (line of sight).

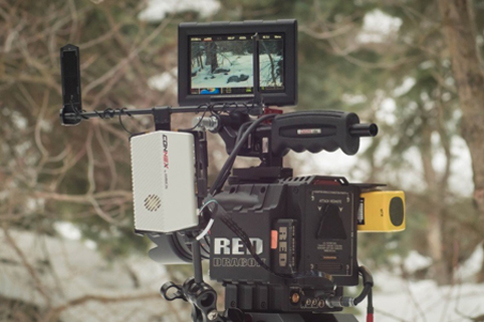

Camera Motion Research is announcing the availability of accessories for Amimon Connex wireless HD sets, allowing them to be used with standard camera rigs by providing engineered antenna mounts and power options.

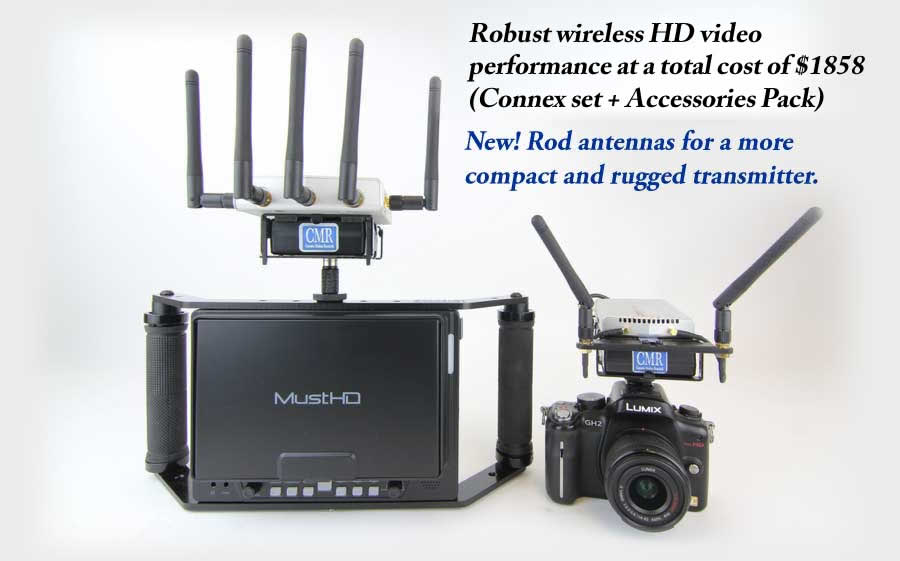

For exceptional robust wireless HD (up to 1080 P60 resolution) – when audio transmission is not required – Amimon Connex with CMR accessories at a total cost under $2K.
The combination of Amimon Connex wireless HD sets and CMR accessories provides reliable zero latency operation equal to, or better than, systems costing thousands of dollars more. They are excellent solutions for indoor and outdoor venues of all types. Note: The Connex air unit has a cooling fan which could be objectionable on sound sets
|Up to 3,300ft./1,000m (LOS)
|Zero (Less than 1mS)
|Automatic frequency selection (AFS)
|1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p25,
1080p/24, 720p/60, 720p/50, 525i/60, 625i/50
|Up to 4 receivers with no delay or quality degradation (Requires extra ground unit/s)
|MAVLINK Telemetry Based
|AES-128 & RSA 1024 for key exchange
|CE, FCC, MIC
|HDMI (Type A)
|102 x 63.6 x 15.6
|129 x 89 x 20
Cinematography environments using wireless HD usually don’t require LOS operating distances of thousands of feet. But they often require non-LOS operation over much shorter ranges. And that is where the robust performance of the Connex can make the difference.
Outdoor RF free field (no reflections) testing with Amimon Connex sets done by CMR has demonstrated typical NON-LOS (transmitter antennas blocked) range of 600 ft., and 350 ft. with both transmitter and receiver antennas blocked. Also, lost connections are typically quickly recovered with small distance backtracking
Connections can actually benefit from reflected RF, taking advantage of MIMO technology, to provide robust performance without dead zones. This is especially true for large indoor venues.
We have also seen where other RF sources, and not necessarily just other wireless HD 5GHz sets, can severely limit range on less robust systems. 5 GHz upper band WIFI activity is becoming an increasing source of noise. An example is a football stadium where a campus wide WIFI system gets hit by many users on tablets or cellphones using the WIFI access. The Connex has been shown to be much more tolerant of this kind of interference with significantly less loss of range.
Going through walls: Propagation of 5 GHz signals through walls and building structures is nearly impossible to generalize. Our testing shows the Connex to be more robust transmitting through building walls, but certainly not in the ratios comparing LOS range specs of different systems.
Signal attenuation guide (low is better for transmission):
“A really beautiful Wireless Video kit. The Amimon Connex sent over from Camera Motion Research can send a full 1080p HD signal 10x further than other systems in its price range…. This custom kit is using special batteries and mounting hardware to go from drone use to ProVideo use. If you're looking to send video to a director's monitor reliably, with great distance, and super low latency, this is going to be the kit.”
“Absolutely love the kit. The distance achieved for ground work is amazing. The CMR cage system is such a needed accessory. It turns a $1600 transmitter into a studio wireless staple.”
“When looking for a cost effective wireless solution, the options were very limited and unreliable until we came across the Connex. It has outstanding range that can cover an entire football field or gym. The only problem, it did not have a good way to interface with a multi-cam configuration. Camera Motion Research has solved that issue by developing a cage for both the receiver and transmitter along with various power options that enables easy integration into a live production environment. Now, we use the system at almost every event with superb results and reliability.”

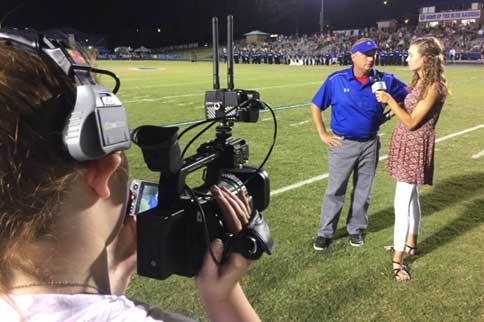

"The Connex wireless video transmission system from Camera Motion Research really enhanced our live streaming experience at our high school by allowing us the capability to be anywhere around our football stadium and not be bound by wires. The range capability of this system is very impressive given the affordability of the product. Streaming full HD video wireless has added an element of excitement among my students who can get the best angles in any live event."
"We were wanting to purchase the higher end of a competitive product, but just couldn't budget it. We found the Connex with CMR accessories, did a test drive in a real live situation, and couldn't believe the quality, especially for the price. Absolutely a really good deal!"
|LOS Range (feet)
*Connex Mini transmitter with Fusion receiver has LOS range 3200 ft.
Contact us for quotes on your special wireless video needs.
Phone: 919-876-6020 Email: firstname.lastname@example.org

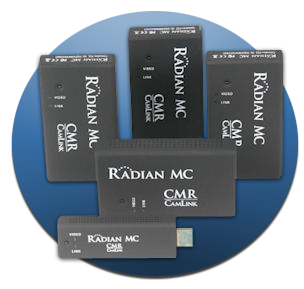

The Radian MC is the most affordable multicast wireless solution available in the marketplace. Radian MC sets are recommended for use in most venues where range required is less than 300 feet, and interference is not severe.
Multicast capability can be used to advantage in training rooms with shared video, church video systems where cabling is not installed, school indoor event coverage, multiple director’s monitors, and the list goes on. And yes, the Radian MC can send video through walls with reduced range. In large indoor gyms, ballrooms, etc, wall and ceiling reflections typically result in perfect signal without regard to antenna blocking.

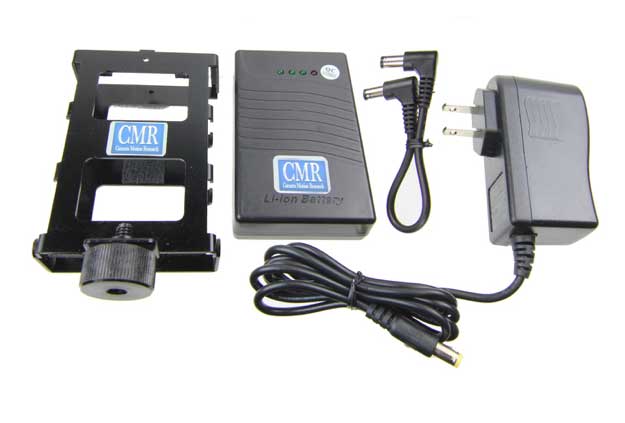

CMR Backbones provide USB battery power and mounting features for both the transmitter and receiver.

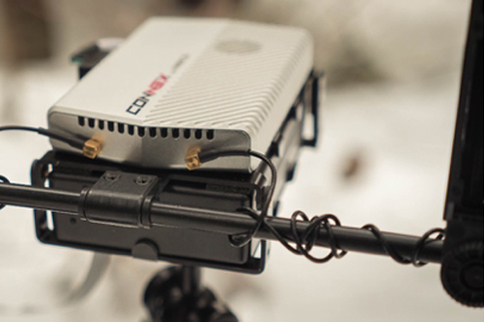

Radians are perfect tools for 3 Axis gimbals, sliders, and cranes when more than 1 receiver is needed.
If low weight is important, you won’t find a lower weight completely self-contained wireless transmitter, than the Radian MC transmitter with a Mini TX backbone. Total weight is just 6 oz. including a 3 hour battery.

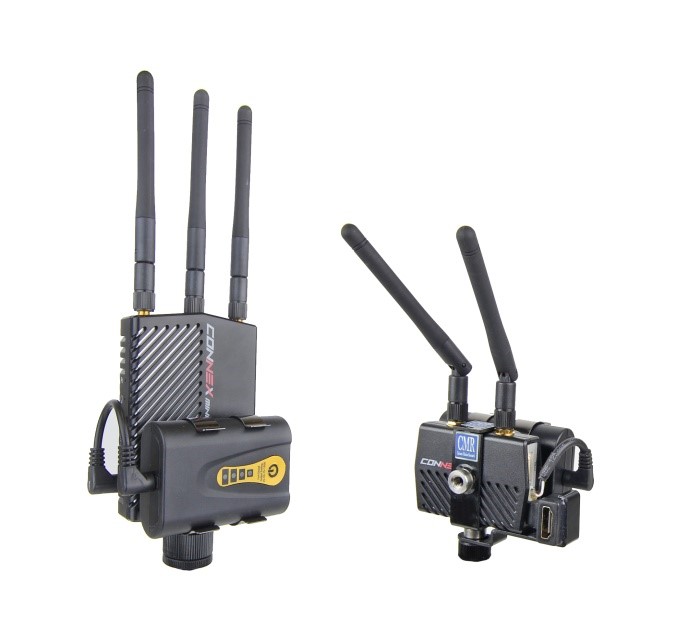

The Amimon Connex Mini with CMR accessories delivers next generation performance in a small package at low cost.
With advanced technology by Amimon designed for the drone market, the Connex Mini provides the range and interference rejection needed for nearly all venues.

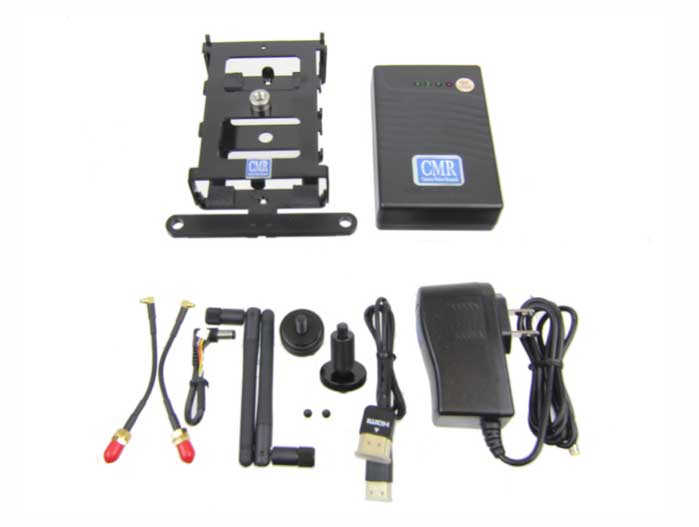

CMR accessories for the Connex Mini adapt it for ordinary camera use, and include perfectly sized lithium ion batteries, rod antennas for the transmitter, a full size HDMI connector, convenient mounting features, and even an SDI converter for the Connex Mini transmitter.

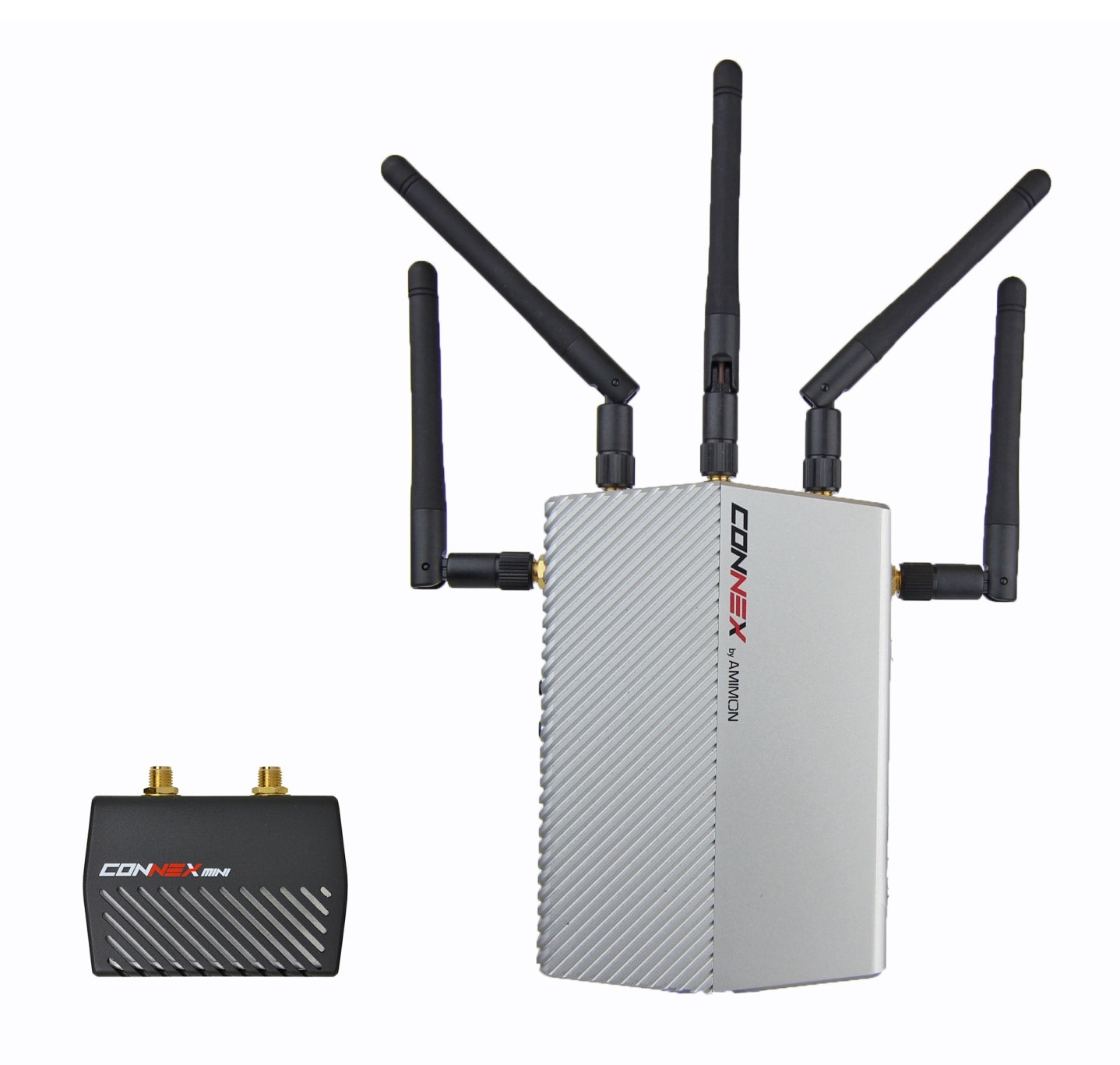

The Connex Mini transmitter can be combined with the Fusion receiver (Connex receiver with updated software) to achieve 3200 ft. LOS range.
You can add our cage kits, SDI kits, batteries or D-tap power cables.
For noisy RF venues and longest range, the Amimon Connex is the most affordable high performance wireless HD set available in the world.

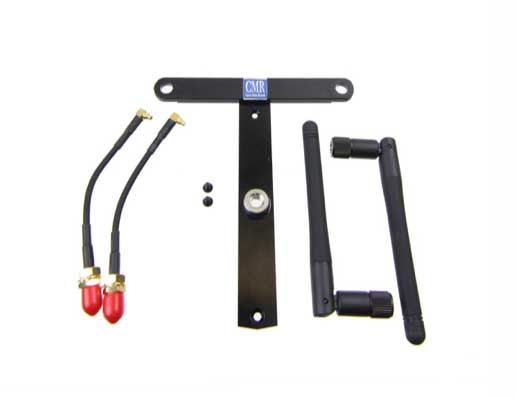

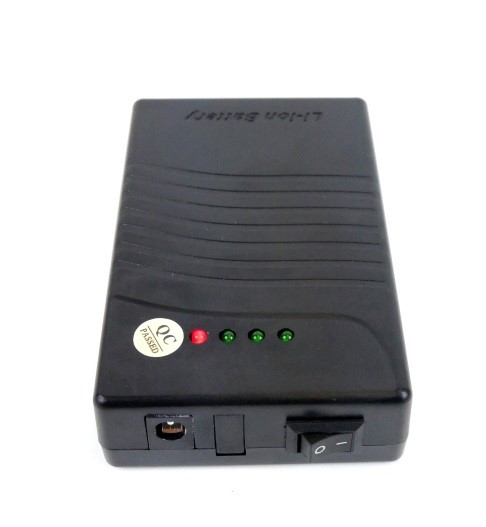

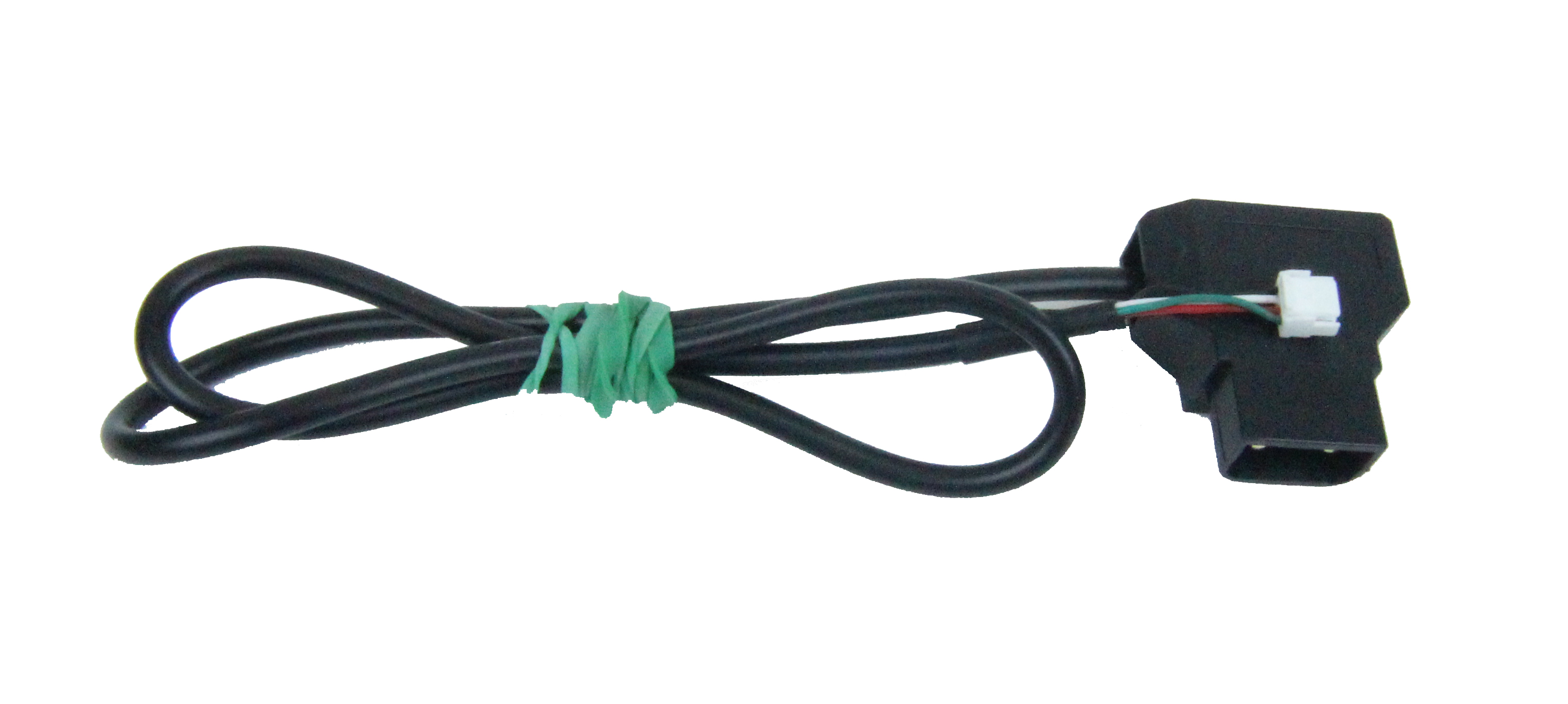

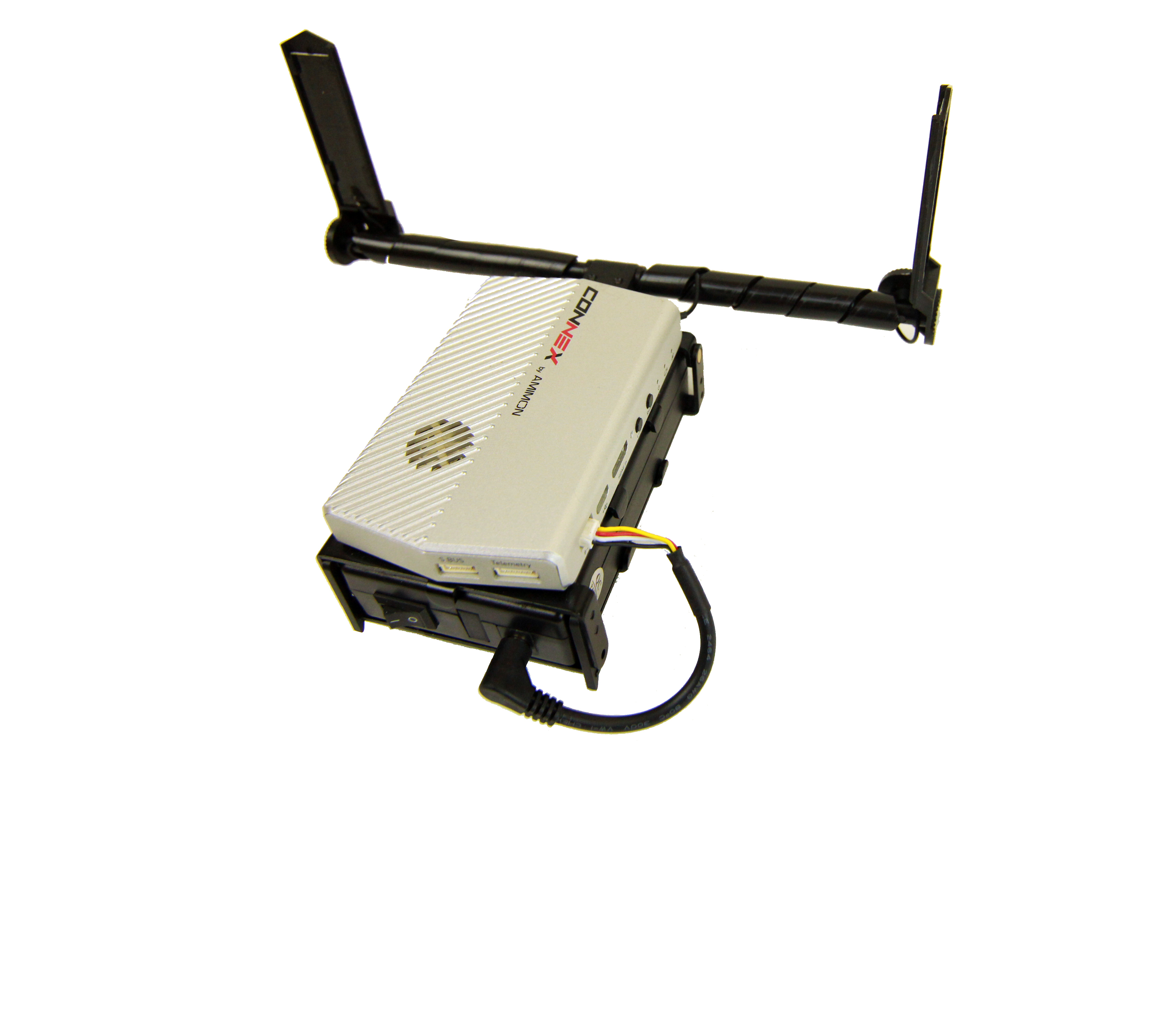

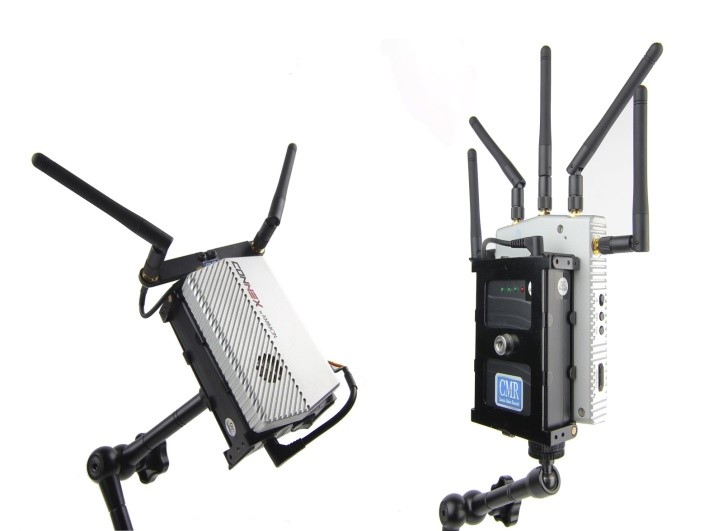

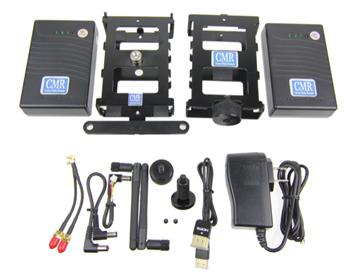

Now the Connex transmitter has sturdy rod antennas, available on the full battery cage, or just the TX antenna mount. Use the CMR battery cage with the 12v lithium ion battery for over 4 hours operating time on the transmitter. Or use the D-tap power cable to power it off your on board V-mount or Anton mount battery (can be used with just the TX antenna support for the most compact package).
The Connex has amazing range and quick re-connect time. And like the Connex Mini, the Connex is drone ready!
