Connex Mini Transmitter and Fusion Receiver Easy Ordering Guide

Click to Expand

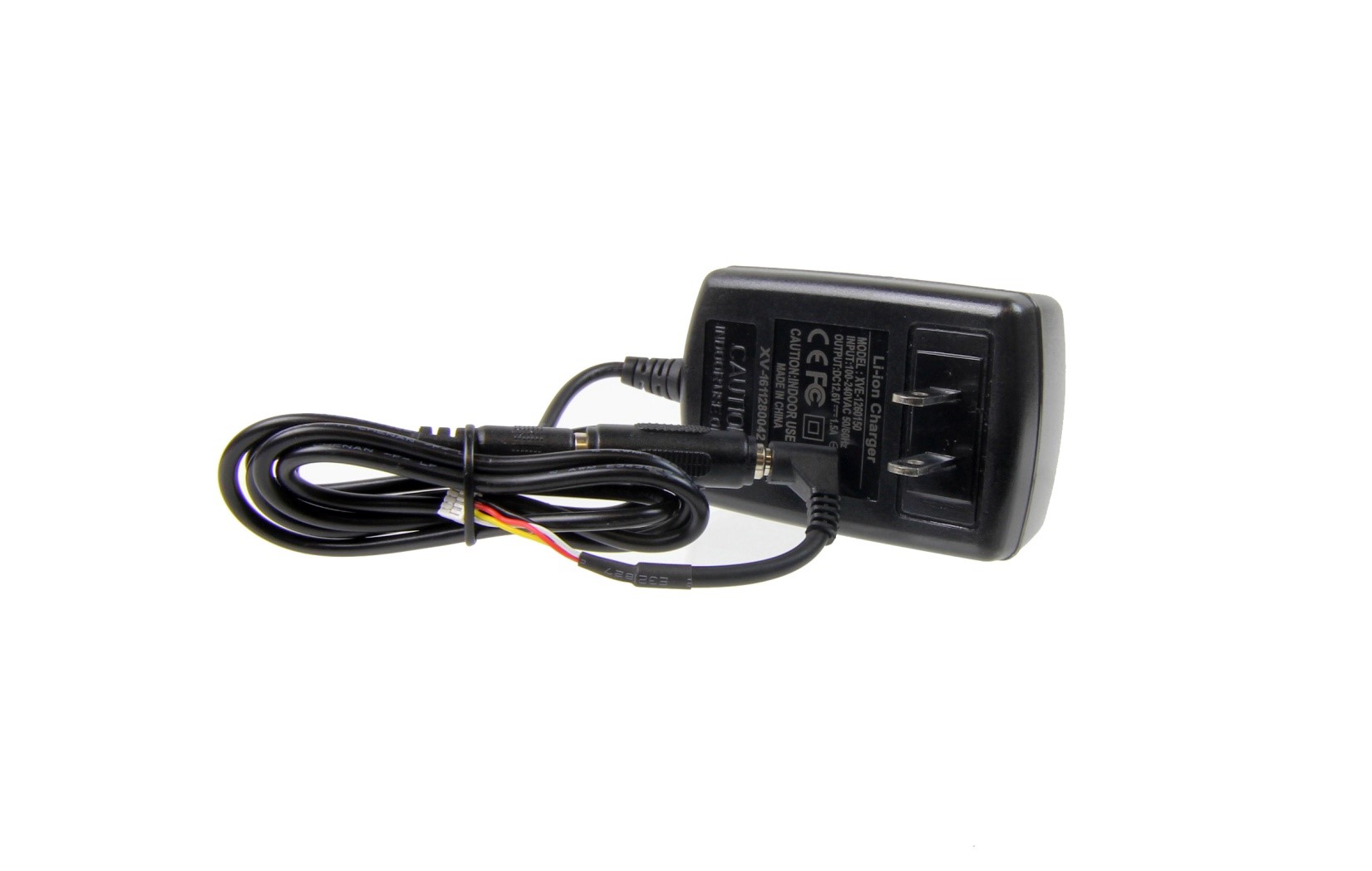

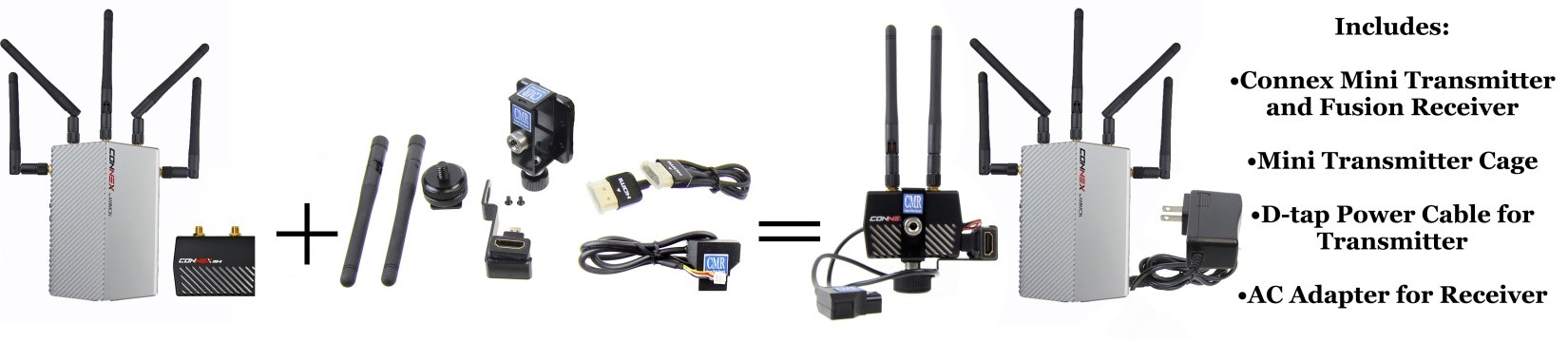

  1. Basic combination if you have D-tap power available for the transmitter and AC power for the receiver. Total cost $1836

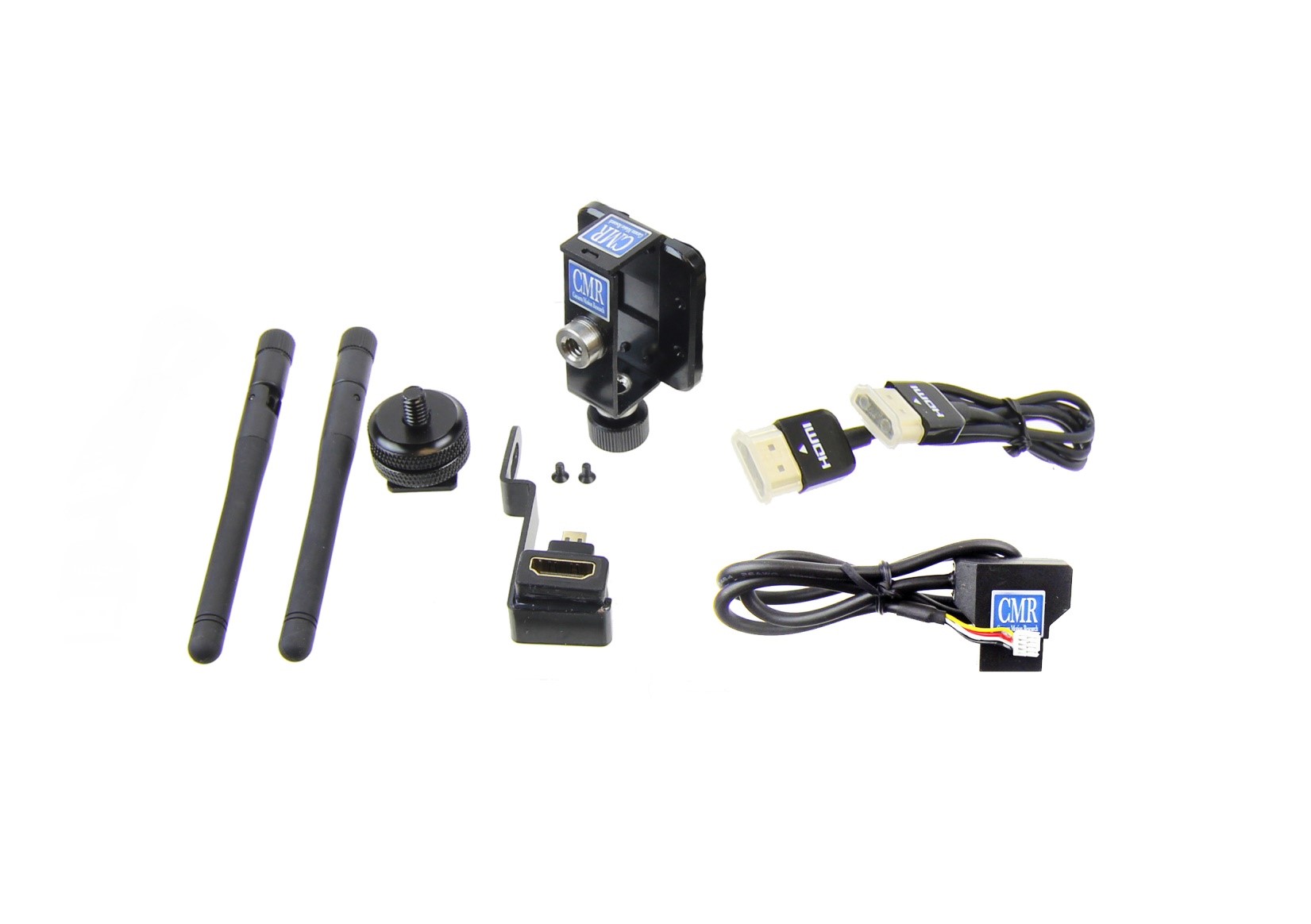

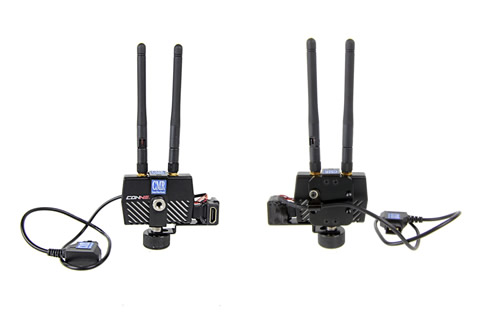

    Order: PN: CONMTF Connex Mini with Fusion Set and PN: ACAXBD Connex Mini Transmitter D-tap Cage

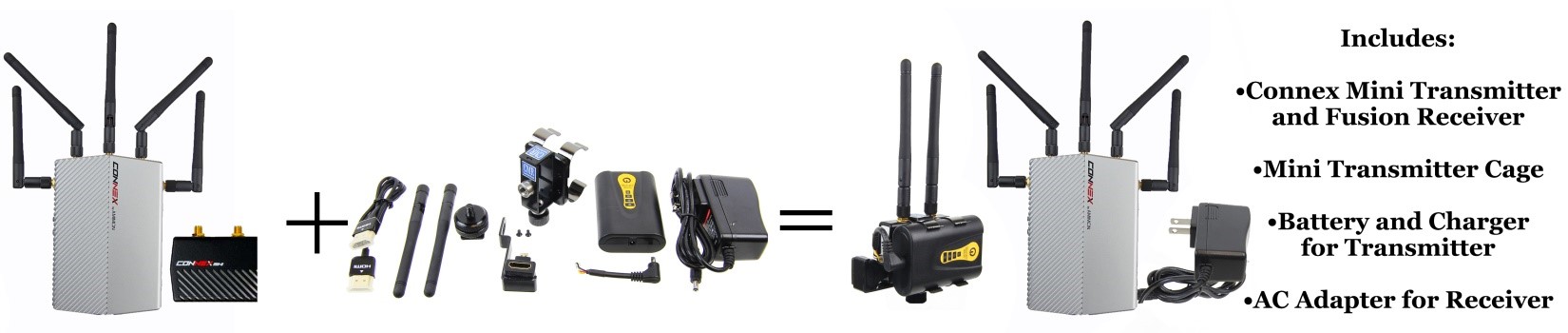

  2. This combination provides battery power for the transmitter and AC power for the receiver. Total cost $1846

    Order: PN: CONMTF Connex Mini with Fusion Set and PN: ACAXBM Connex Mini Transmitter Kit

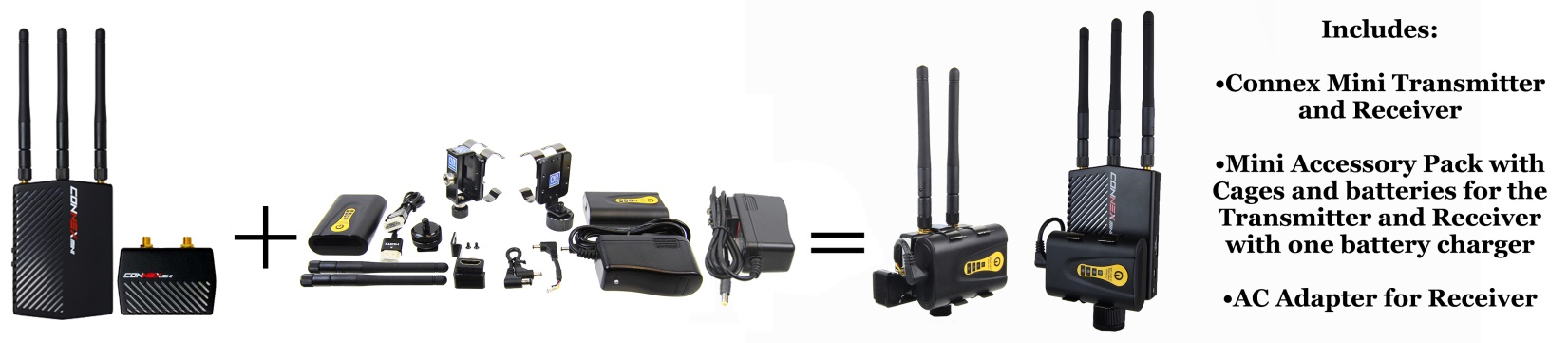

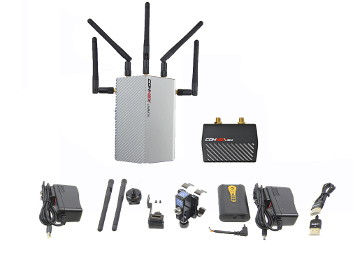

  3. This combination provides battery power for both the transmitter and receiver and also AC power for the receiver. Total cost $1923

    Order: PN: CONMTF Connex Mini with Fusion Set and PN: AP10M Connex Mini Accessory Pack

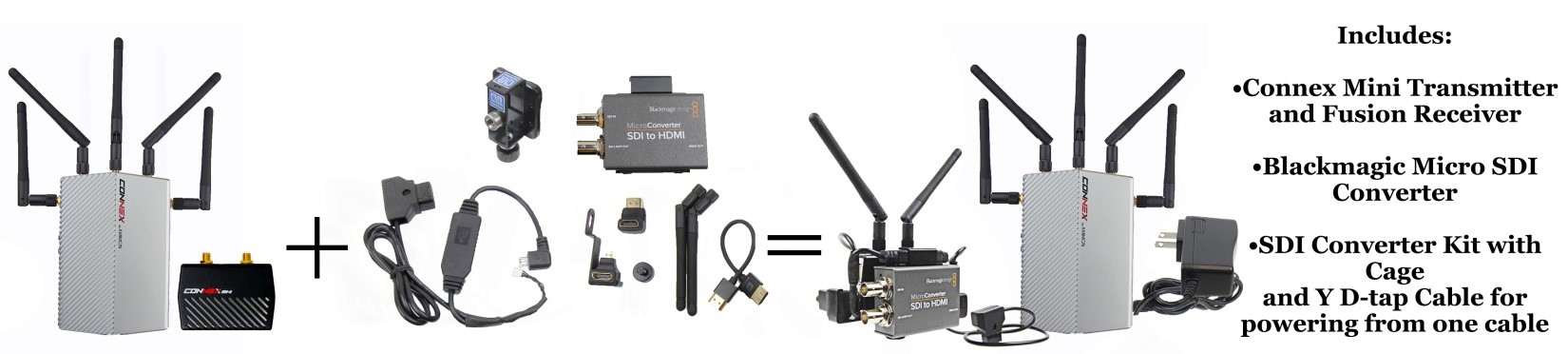

  4. This combination provides a Transmitter SDI solution with D-tap power for the Transmitter & Blackmagic Micro Converter and AC power for the Receiver. Total Cost: $1973

    Order: PN: CONMTF Connex Mini with Fusion Set and PN: TXSDIM Connex Mini Accessory Pack

Click on any item to order

Wireless Sets and Cage Product Listing

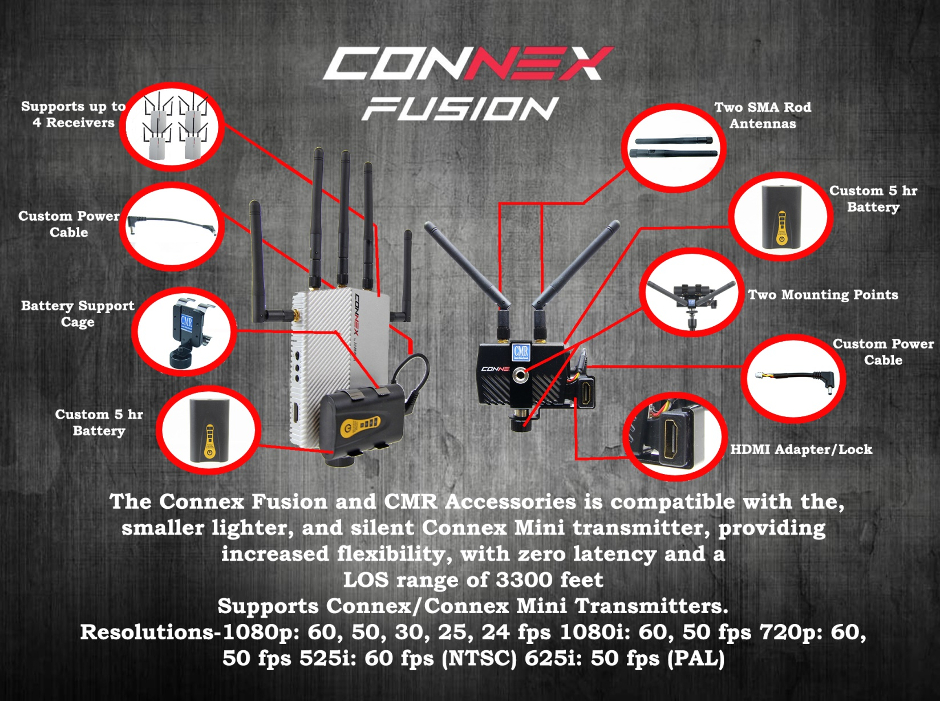

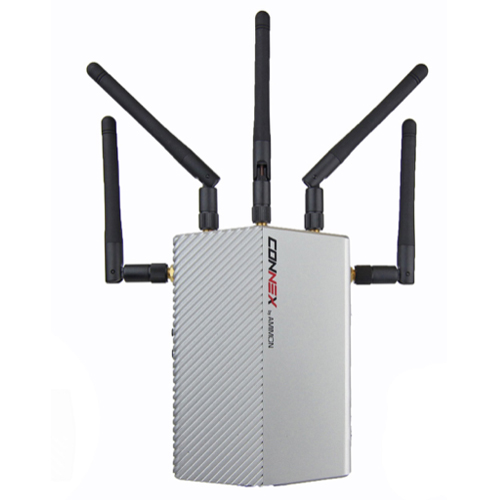

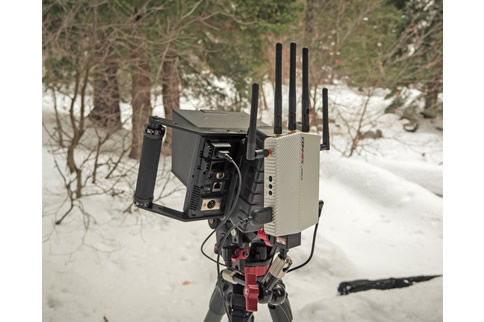

The Connex Fusion receiver is the original Connex receiver with a firmware update that allows it to work with the Connex Mini transmitter, and the combination has the full 3300 ft. LOS range specification.

This combination provides the industries longest guaranteed LOS range spec for a set using standard omnidirectional antennas.

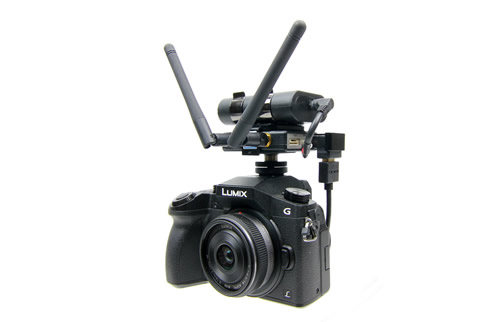

The Connex Mini transmitter can be used with the Connex Mini receiver, the Fusion receiver, and the Long Range receiver.

Connex Mini + Fusion Specifications

Click to Expand

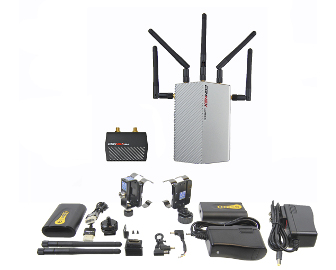

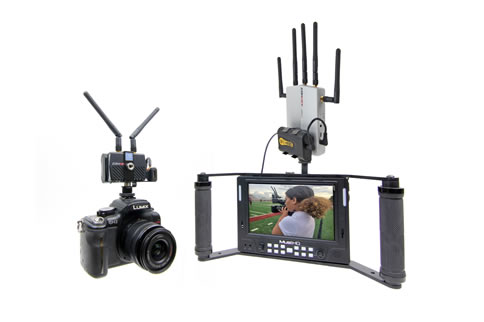

CONNEX Mini Transmitter with Connex Fusion Receiver
Transmission Distance OutdoorUp to 1,000m/3,300 ft. (LoS)
Transmission DelayZero [Less than 1 msec.]
Radio Frequency5.1-5.8 GHz, according to regional regulations
Channel SelectionAutomatic frequency selection [AFS]
Video Formats
  • 1080p60/59.94
  • 1080p/50
  • 1080i60/59.94
  • 1080i/50
  • 1080p30/29.97
  • 1080p24/23.98
  • 720p60/59.94
  • 720p/50
  • 480i60/59.94
  • 480p60/59.94
  • 576i50
  • 576p/50
Multicast ModeUp to 4 receivers with no delay or quality degradation. [Requiring extra Ground Unit(s)]
OSD SupportMAVLink (3DR) and CAN bus (DJI) Telemetry
Gimbal ControlGround unit PPM or S.BUS trainer port input / Air Unit S.BUS port output
EncryptionAES-128 & RSA 1024 for key exchange
Operating Temperature0-45° Celsius
RegulationCE, FCC, MIC


Connex Mini TransmitterConnex Fusion Receiver
Video InterfaceMicro HDMIHDMI (Type A)
Antenna ConnectorsRP SMA (x2)RP SMA (x5)
Power Connector4-pinsDC round
Power Input8*-26V (3S-6S)8*-17V
Dimensions (mm)66 x 45 x15129 x 89 x 20
Weight60 grams290 grams
* CMR tested to 7V minimum

Download CMR Quick Guide for Mini TX, Mini RX, and Fusion RX Accessories (PDF)

Download CMR SDI Accessory for the Amimon Connex Mini Transmitter Quick Guide (PDF)
